PRP Pro Series Plus Ignition Timing Kit - Nissan RB20/RB25/RB26

SKU TWINTRIGPRO+-BLKNOC
Original price $1,161.36 - Original price $1,323.37
Original price
$1,161.36
$1,161.36 - $1,323.37
Current price $1,161.36

Note:  Upgraded over the Pro Series V2 (Plus variant includes extra hardened backing washer and heavier duty solid gear - No lightening)

Unleash the potential of your RB20, RB25, RBB25 NEO, or RB26 engine with PRP's Pro Series Ignition Timing Kit. This top-tier kit features our innovative 36-2 Tooth profile and MoTeC sensors for applications up to 3000whp. Trusted by 1000hp+ street cars and championship-winning motorsports vehicles like the 'Xtreme GTR' and 'Integrated Motorsports R34,' this kit provides unmatched precision and data resolution.

Product Highlights:
Introducing PRP's Big Hitter and Most Recommended Ignition Timing Kit!
New 36-2 Tooth Profile: Our PRO series 36-2 Crank ignition timing kit features this latest tooth profile including a blackened, hardened and heat treated backing washer which is an upgrade over the standard Pro Series Ignition Timing Kit
High-Quality Sensors: Utilizes a MoTeC 'reluctor' type sensor and our all-new MoTeC Camshaft 'hall effect' type sensor.
Sealed Sensor Design: Completely sealed sensor with an external plug system designed for applications up to 3000whp.

The PRP Pro Series Ignition Timing Kit has a track record of success:
Tried, tested, and proven on MANY 1000hp+ street cars.
Trusted by famous motorsport cars, including the world time attack open class 1st place winner 'Xtreme GTR' and 2nd place winner 'Integrated Motorsports R34'.

This updated pro series ignition timing kit offers:
Up to 3 times more data than our current 12-tooth intermediate system. Flawless resolution.

Our kit is designed with precision in mind:
Non-balancer-based crankshaft timing wheel to eliminate unwanted movement.
Compact 100 mm timing disc with a large sensor for optimal performance.
Swept-back sensor mount design for perfect positioning.

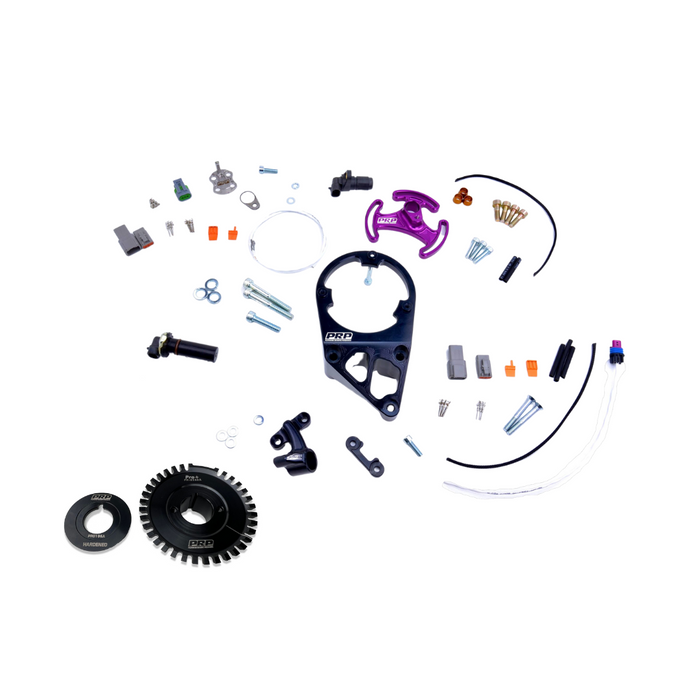

The kit comes complete with:

  • Pro Series Hardened Billet Steel 1045 Steel Cut Gear With No holes For Extra Strength inc PRP Rear EN36 (40rockwell) Blackened/Hardened/Heat treated Washer
  • MoTeC reluctor (with MoTeC support).
  • Bottom sensor mount.
  • All necessary plugs, pins, gauze, and heat shrink.
  • Teflon shielded twin-core wire.
  • Bolts and general hardware.
  • Top sensor plate.
  • Top sensor.
  • Stainless cam plate.
  • Additional bolts and hardware.
  • Plugs, pins, heat shrink, and braid.
  • Optional Billet CAS bracket (available at a discounted bundle rate).
  • One-year warranty on sensors and a lifetime warranty on the rest.


Custom Color Options:
Please specify your custom color choice in the cart area's "Special Notes" section.

Custom colors available include:

  • Gold
  • Bronze
  • Grey
  • Teal
  • Orange
  • Green
  • Cardo Zinc
  • PINK

Notes:

  • Crank sensor bracket holders are available in black only.
  • Not compatible with Haltech 'Platinum Pro Plugin ECU'
  • If you require a custom ignition timing kit solution or wish to purchase the crank or cam ignition timing kit separately, please visit our 'CUSTOM' ignition timing kit listing here
