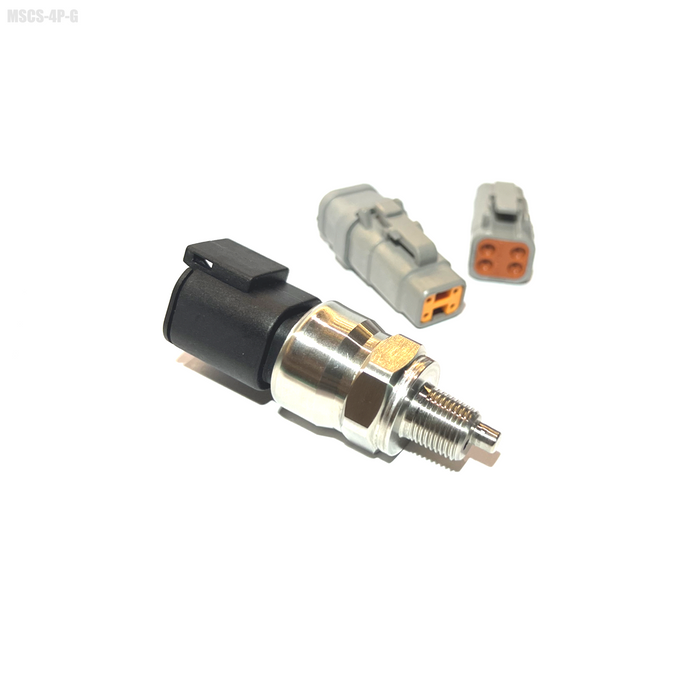

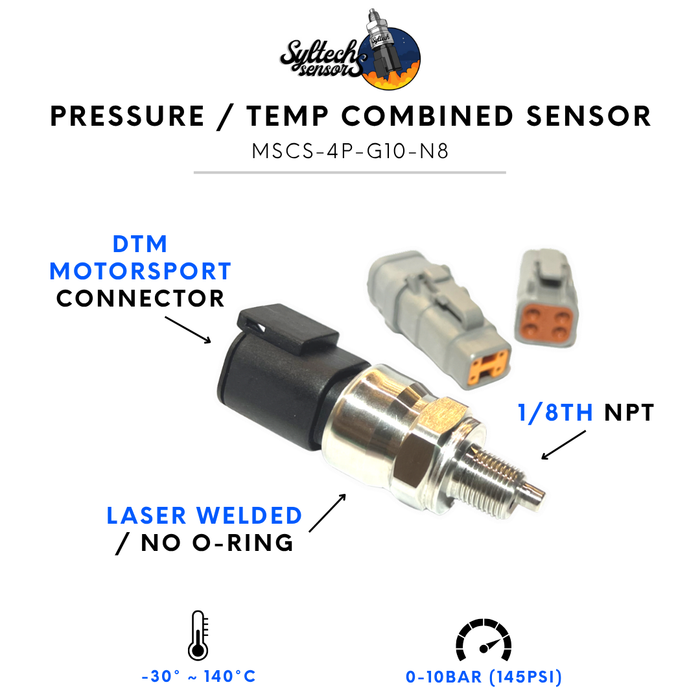

MSCS 10 BAR GAUGE Pressure & Temperature Sensor

Includes:
Optioned Mating Connector: DTM06-4S / DTM06-4S-E007

Description:
Deutsch DTM Connector
Stainless Construction
GAUGE Pressure 0 to 10BAR
Temperature -30 to 140degC
Closed Element

Key Features of the 2025 Model:

• Precision SS pressure diaphragm used, our G10 diaphragm from our precision MSPP series is now used in this sensor also allowing a tighter full scale accuracy range upgrade from +/-1.0% to +/-0.5%!  For reference, other competitor's equivalent sensor accuracy range is only 2.0% making this model 4 times sharper.
• The sensor body is now fractionally shorter than previous model as a result of this diaphragm use.


• Faster NTC temperature element used,  glass coated NTC temperature element for faster temperature response times.
• This allowed a smaller probe tip to minimize potential flow restrictions if used in small hose and pipes.
• Also offset temperature probe tip and larger centralized pressure port, allows installers to use 'generous' applications of thread sealant and very tight tapered thread adapters/bungs without the risk of accidentally blocking the pressure port.


• New sensor is 100% laser weld assembled, no O-ring seals used to ensure the fluid media can never touch the internals of the sensor unlike competitor's equivalents.
• Safe to use on volatile fluids such as fuel without the risk of leaks.
• Safe to use in coolant unlike other competitor's equivalent sensors.

Best Use Examples:
Higher air and fluid pressures such as oils, fuels.
